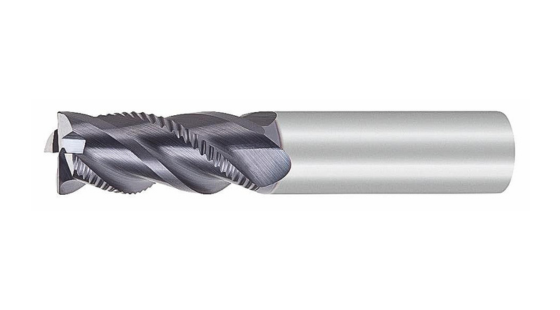

Cylindrical roughing end mills

Standard cylindrical roughing end mills of MASAM are manufactured for all kind of machining materials at the same price. After the end of the tool life, we offer for our customers re-grinding process in discounted price. If your tool is not in the tables below, we have prepared an offer of special – cylindrical end mills.

Description

Cylindrical roughing end mills for steel and cast iron

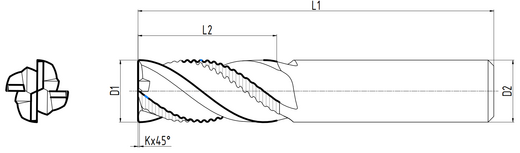

D₁	D₂	L₁	L₂	Functional L₃/D₃	z	Labeling
10	10h6	81	30	40/9,8	4	VH.10.10.04.030.081.P
10	10h6	108	35	65/9,8	4	VH.10.10.04.035.108.P
12	12h6	81	30	35/11,8	4	VH.12.12.04.030.081.P
12	12h6	108	35	60/11,8	4	VH.12.12.04.035.108.P
14	14h6	108	35	60/13,8	4	VH.14.14.04.035.108.P
16	16h6	108	35	60/15,8	4	VH.16.16.04.035.108.P
16	16h6	163	45	110/15,8	4	VH.16.16.04.045.163.P
20	20h6	108	40	55/19,8	4	VH.20.20.04.040.108.P
20	20h6	163	50	110/19,8	4	VH.20.20.04.050.163.P
25	25h6	108	40	50/24,8	4	VH.25.25.04.040.108.P
25	25h6	163	50	100/24,8	4	VH.25.25.04.050.163.P

Cylindrical roughing end mills for aluminium alloys

D₁	D₂	L₁	L₂	Functional L₃/D₃	z	Labeling
10	10h6	81	30	40/9,8	3	VH.10.10.03.025.081.A
10	10h6	108	35	65/9,8	3	VH.10.10.03.030.108.A
12	12h6	81	30	35/11,8	3	VH.12.12.03.030.081.A
12	12h6	108	35	60/11,8	3	VH.12.12.03.035.108.A
14	14h6	108	35	60/13,8	3	VH.14.14.03.035.108.A
16	16h6	108	35	60/15,8	3	VH.16.16.03.035.108.A
16	16h6	163	45	110/15,8	3	VH.16.16.03.045.163.A
20	20h6	108	40	55/19,8	3	VH.20.20.03.040.108.A
20	20h6	163	50	110/19,8	3	VH.20.20.03.050.163.A
25	25h6	108	40	50/24,8	3	VH.25.25.03.040.108.A
25	25h6	163	50	100/24,8	3	VH.25.25.03.050.163.A
