Special cylindrical end mills for trochoidal machining
Special cylindrical end mills for trochoidal machining - Image 2
Special cylindrical end mills for trochoidal machining - Image 3

Special cylindrical end mills for trochoidal machining

Category:

Special cylindrical end mills for trochoidal machining of MASAM are designed according coolant type in machining process. We also offered trochoidal mills for aluminium steels. After the end of the tool life, we offer for our customers re-grinding process in discounted price. If your tool is not in the tables below, we have prepared an offer of special – cylindrical end mills.

Description

Machining without the use of cutting liquids

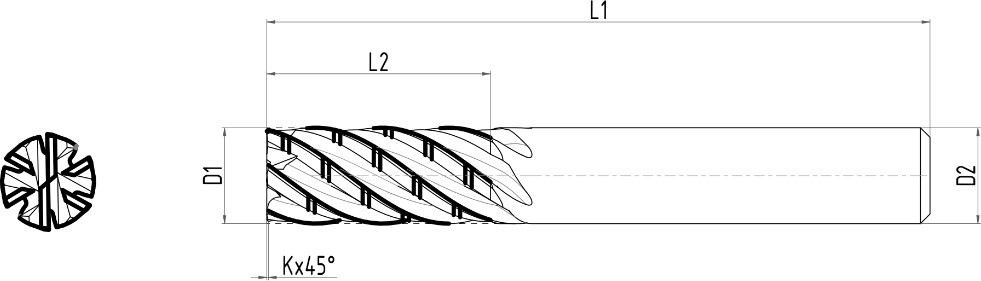

D1 D2 L1 L2 Functional

L3/D3

 z Labeling
6 6h6 63 18 25/5,8 4 VT.6.6.04.018.063.PS
8 8h6 81 24 35/7,8 4 VT.8.8.04.024.081.PS
10 10h6 81 30 40/9,8 4 VT.10.10.04.030.081.PS
10 10h6 108 45 55/9,8 4 VT.10.10.04.045.108.PS
10 10h6 81 30 40/9,8 6 VT.10.10.06.030.081.PS
10 10h6 108 45 55/9,8 6 VT.10.10.06.045.108.PS
12 12h6 81 33 40/11,8 4 VT.12.12.04.033.081.PS
12 12h6 108 45 55/11,8 4 VT.12.12.04.045.108.PS
12 12h6 81 33 40/11,8 6 VT.12.12.06.033.081.PS
12 12h6 108 45 55/11,8 6 VT.12.12.06.045.108.PS
14 14h6 108 45 55/13,8 4 VT.14.14.04.045.108.PS
14 14h6 108 45 55/13,8 6 VT.14.14.06.045.108.PS
16 16h6 108 45 55/15,8 4 VT.16.16.04.045.108.PS
16 16h6 108 45 55/15,8 6 VT.16.16.06.045.108.PS
20 20h6 108 50 55/19,8 4 VT.20.20.04.050.108.PS
20 20h6 163 50 110/19,8 4 VT.20.20.04.050.163.PS
20 20h6 108 50 55/19,8 6 VT.20.20.06.050.108.PS
20 20h6 163 50 110/19,8 6 VT.20.20.06.050.163.PS
25 25h6 108 40 50/24,8 4 VT.25.25.04.040.108.PS
25 25h6 163 60 100/24,8 4 VT.25.25.06.060.163.PS

Machining with the use of cutting liquids

D1 D2 L1 L2 Functional
L3/D3		 z Labeling
6 6h6 63 18 25/5,8 4 VT.6.6.04.018.063.PC
8 8h6 81 24 35/7,8 4 VT.8.8.04.024.081.PC
10 10h6 81 30 40/9,8 4 VT.10.10.04.030.081.PC
10 10h6 108 45 55/9,8 4 VT.10.10.04.045.108.PC
10 10h6 81 30 40/9,8 6 VT.10.10.06.030.081.PC
10 10h6 108 45 55/9,8 6 VT.10.10.06.045.108.PC
12 12h6 81 33 40/11,8 4 VT.12.12.04.033.081.PC
12 12h6 108 45 55/11,8 4 VT.12.12.04.045.108.PC
12 12h6 81 33 40/11,8 6 VT.12.12.06.033.081.PC
12 12h6 108 45 55/11,8 6 VT.12.12.06.045.108.PC
14 14h6 108 45 55/13,8 4 VT.14.14.04.045.108.PC
14 14h6 108 45 55/13,8 6 VT.14.14.06.045.108.PC
16 16h6 108 45 55/15,8 4 VT.16.16.04.045.108.PC
16 16h6 108 45 55/15,8 6 VT.16.16.06.045.108.PC
20 20h6 108 50 55/19,8 4 VT.20.20.04.050.108.PC
20 20h6 163 50 110/19,8 4 VT.20.20.04.050.163.PC
20 20h6 108 50 55/19,8 6 VT.20.20.06.050.108.PC
20 20h6 163 50 110/19,8 6 VT.20.20.06.050.163.PC
25 25h6 108 40 50/24,8 4 VT.25.25.04.040.108.PC
25 25h6 163 60 100/24,8 4 VT.25.25.06.060.163.PC

Machining of aluminium alloys

D1 D2 L1 L2 Functional

L3/D3

 z Labeling
6 6h6 63 18 25/5,8 3 VT.6.6.03.018.063.A
8 8h6 81 24 35/7,8 3 VT.8.8.03.024.081.A
10 10h6 81 30 40/9,8 3 VT.10.10.03.030.081.A
10 10h6 108 45 55/9,8 3 VT.10.10.03.045.108.A
12 12h6 81 33 40/11,8 3 VT.12.12.03.033.081.A
12 12h6 108 45 55/11,8 3 VT.12.12.03.045.108.A
14 14h6 108 45 55/13,8 3 VT.14.14.03.045.108.A
16 16h6 108 45 55/15,8 3 VT.16.16.03.045.108.A
20 20h6 108 50 55/19,8 3 VT.20.20.03.050.108.A
20 20h6 163 50 110/19,8 3 VT.20.20.03.050.163.A
25 25h6 108 40 50/24,8 3 VT.25.25.03.040.108.A
25 25h6 163 60 100/24,8 3 VT.25.25.0.060.163.A
