MICRO-BALL NOSE END MILLS
MICRO-BALL NOSE END MILLS - Image 2

MICRO-BALL NOSE END MILLS

Category:

MASAM micro-ball nose end mills are offered in short, medium and long shank versions. The cutters are lightweight and suitable for application to all types of materials up to 70 HRC hardness. We produce the cutters as double-edged with a 30 degree helix.

Description

MICRO BALL NOSE END MILLS – Short neck

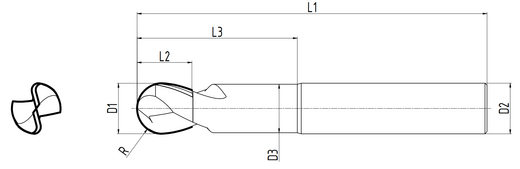

Labeling MASAM D1 [mm] D2 [mm] DN [mm] L1 [mm] L2 [mm] z Price
MC30.04.005.02.015.500.PHH 0.50 4 0.45 50 1.50 2 36.90 €
MC30.04.006.02.020.500.PHH 0.60 4 0.58 50 2.00 2 29.60 €
MC30.04.008.02.020.500.PHH 0.80 4 0.78 50 2.00 2 29.60 €
MC30.04.010.02.025.500.PHH 1.00 4 0.95 50 2.50 2 29.60 €
MC30.04.010.02.030.500.PHH 1.00 4 0.95 50 3.00 2 29.60 €
MC30.04.012.02.030.500.PHH 1.20 4 1.15 50 3.00 2 29.60 €
MC30.04.016.02.040.500.PHH 1.60 4 1.55 50 4.00 2 29.60 €
MC30.04.020.02.040.500.PHH 2.00 4 1.94 50 4.00 2 29.60 €
MC30.04.020.02.050.500.PHH 2.00 4 1.95 50 5.00 2 29.60 €
MC30.06.025.02.060.600.PHH 2.50 6 2.45 60 6.00 2 34.60 €
MC30.04.030.02.075.600.PHH 3.00 6 2.95 60 7.50 2  34.60 €

MICRO BALL NOSE END MILLS – Medium neck

Labeling MASAM D1 [mm] D2 [mm] DN [mm] L1 [mm] L2 [mm] z Price
MC30.04.005.02.025.500.PHH 0.50 4 0.45 50 2.50 2 36.90 €
MC30.04.010.02.050.500.PHH 1.00 4 0.95 50 5.00 2 29.60 €
MC30.04.016.02.080.500.PHH 1.60 4 1.55 50 8.00 2 29.60 €
MC30.04.020.02.100.500.PHH 2.00 4 1.95 50 10.00 2 29.60 €
MC30.04.025.02.125.600.PHH 2.50 6 2.45 60 12.50 2 34.60 €
MC30.04.030.02.150.600.PHH 3.00 6 2.95 60 15.00 2 34.60 €

MICRO BALL NOSE END MILLS – Long neck

Labeling MASAM D1 [mm] D2 [mm] DN [mm] L1 [mm] L2 [mm] z Price
MC30.04.005.02.040.500.PHH 0.5 4 0.45 50 4 2 36.90 €
MC30.04.010.02.080.500.PHH 1 4 0.95 50 8 2 29.60 €
MC30.04.016.02.128.500.PHH 1.6 4 1.55 50 12.8 2 29.60 €
MC30.04.020.02.160.500.PHH 2 4 1.95 50 16 2 29.60 €
MC30.04.025.02.200.600.PHH 2.5 6 2.45 60 20 2 34.60 €
MC30.04.030.02.240.600.PHH 3 6 2.95 60 24 2 34.60 €
