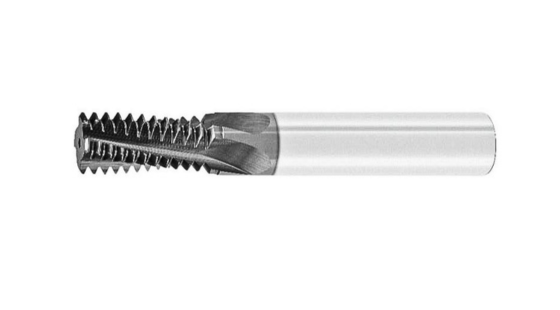

THREAD MILLING CUTTERS

Category:

Thread milling cutters are a modern and efficient solution for threading a wide range of materials, such as steel, cast iron, stainless steel and non-ferrous metals. They offer higher accuracy, longer life and the ability to machine harder materials without the risk of tool breakage. The optimized milling cutter geometry reduces vibrations and ensures smoother tool movement in the cut.

Description

THREAD MILLING CUTTERS

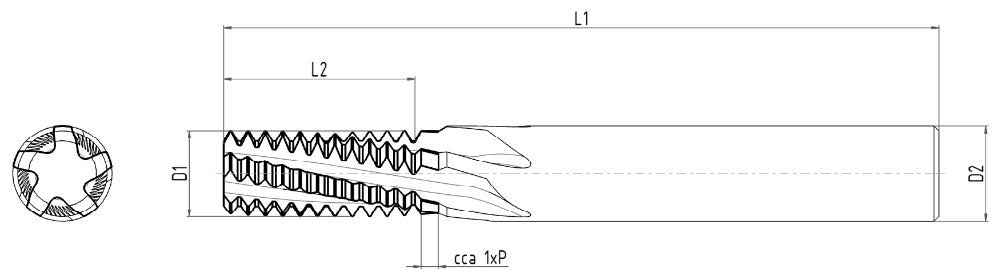

Catalog number Thread D1 D2 L1 L2 z Pitch Price
MAZ.04.M4.P M4 3,1 6 54 6,3 4 0,7 73.00 €
MAZ.04.M5.P M5 4 6 54 8 4 0,8 92.10 €
MAZ.04.M6.P M6 4,5 6 54 9 4 1 92.10 €
MAZ.04.M8.P M8 6 8 65 12,5 4 1,25 101.70 €
MAZ.04.M10.P M10 7,5 10 72 15 4 1,5 102.90 €
MAZ.05.M12.P M12 9 10 72 19,25 5 1,75 119.60 €
MAZ.05.M14.P M14 10,5 12 82 21 5 2 154.30 €
MAZ.05.M16.P M16 12 12 82 24 5 2 184.20 €
MAZ.05.M18.P M18 13,5 14 92 27,5 5 2,5 219.00 €
MAZ.05.M20.P M20 15 16 92 30 5 2,5 228.50 €
